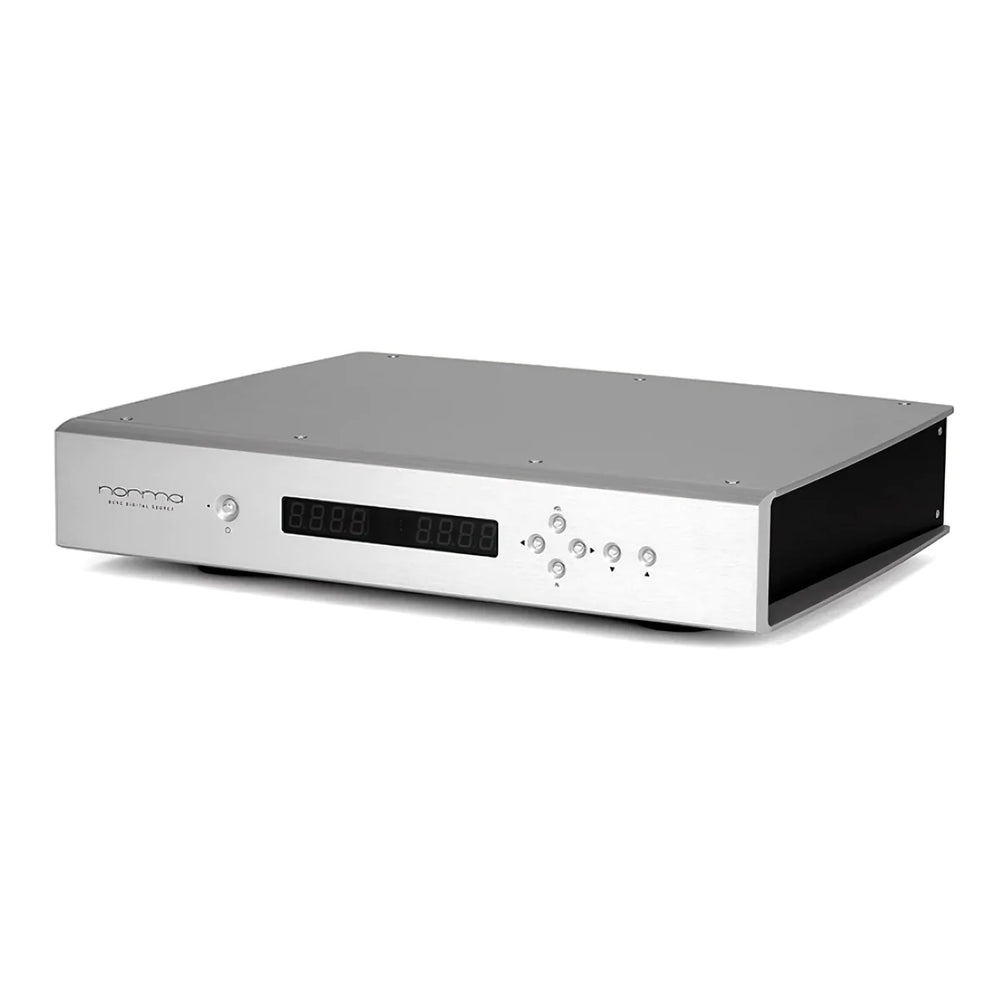

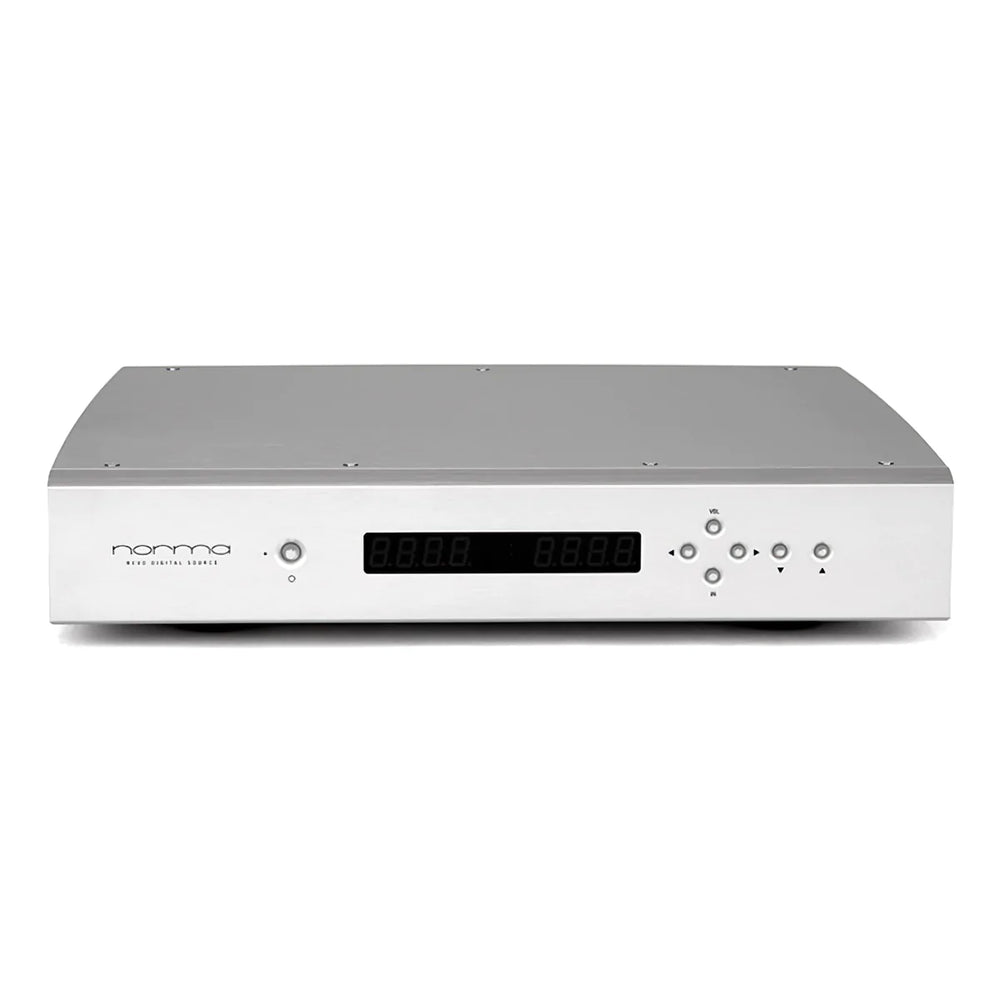

ממיר דיגיטלי לאנלוגי NORMA AUDIO REVO DAC- 2

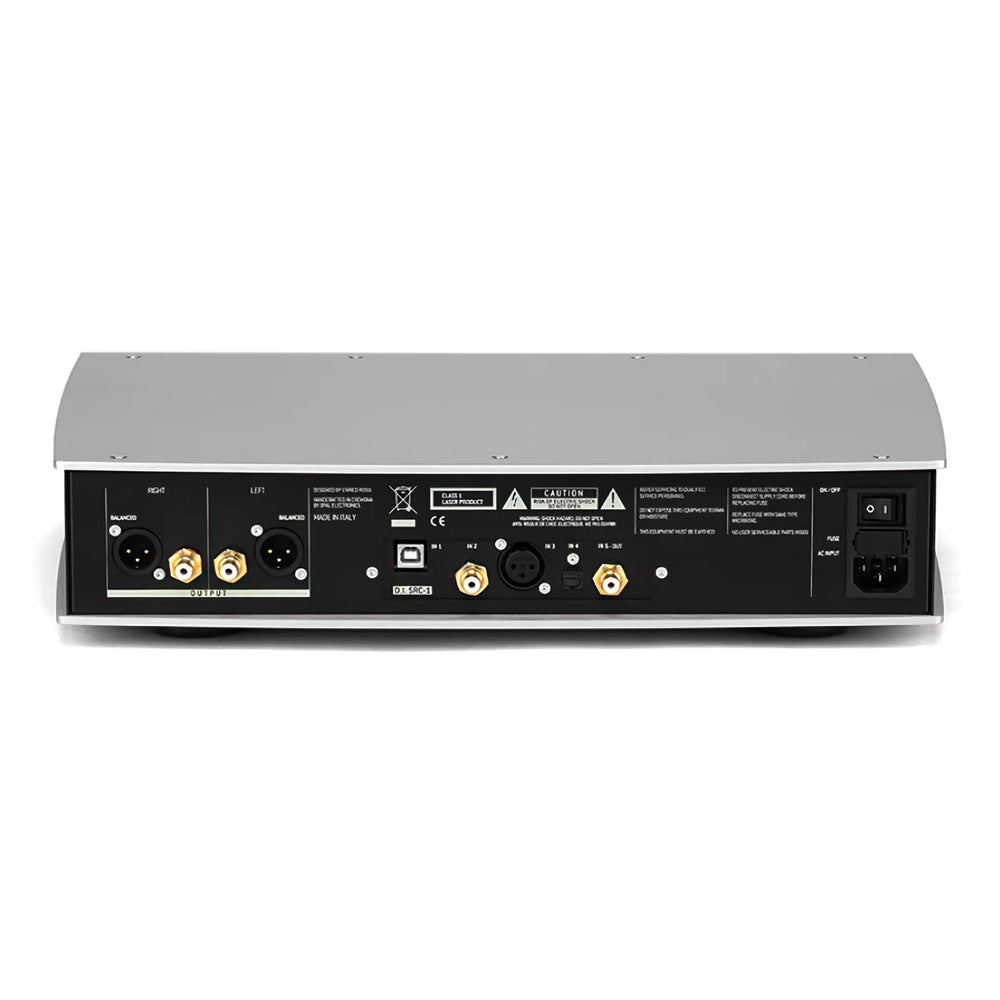

Connections Inputs

IN1 : USB, 2.0 High Speed
IN2 : SPDIF RCA, 75Ohms

Connections Inputs

IN3 : AES/EBU XLR, 110Ohms
IN4 : TOSLINK OPTICAL, 96 KHz, (192.0 KHz may be achieved, but not guaranteed)

Connections Inputs

IN5 : SPDIF RCA, 75Ohms (IN5 can be set as SPDIF Output by CD Mechanism)

Sampling Frequencies

44.1 Khz – 768.0 Khz; DSD: Max x512

Clock performances

+/- 2ppm typ. at 25°, +/- 10ppm at 60°

Connections Outputs

Line RCA output, XLR Balanced

Outputs Voltage

3.0 V RMS (+10 dBV) RCA (at 0 dB), 6.0 V RMS (+16 dBV) XLR(at 0 dB)

Output Impedance

200 ohm

Analogue Output Filter

0,0 to 180 kHz +/- 3 dB

Analogue Stage Frequency Response

0,0 to 2MHz +/- 3 dB

Configuration

Solid state

D/A Converter

NORMA Proprietary DAC, A-DAC model 1

I/V Conversion

I/V Conversion by proprietary topology with discrete component

Output Stage

Proprietary topology with discrete component, high linearity & low noise

Supply

230 V AC / 50 Hz, (100V AC or 115 VAC / 50-60Hz in some country)

Dimensions (HxWxD)

75 x 430 x 350 mm

Weight

10 Kg

Note

DAC Source with full remote control
