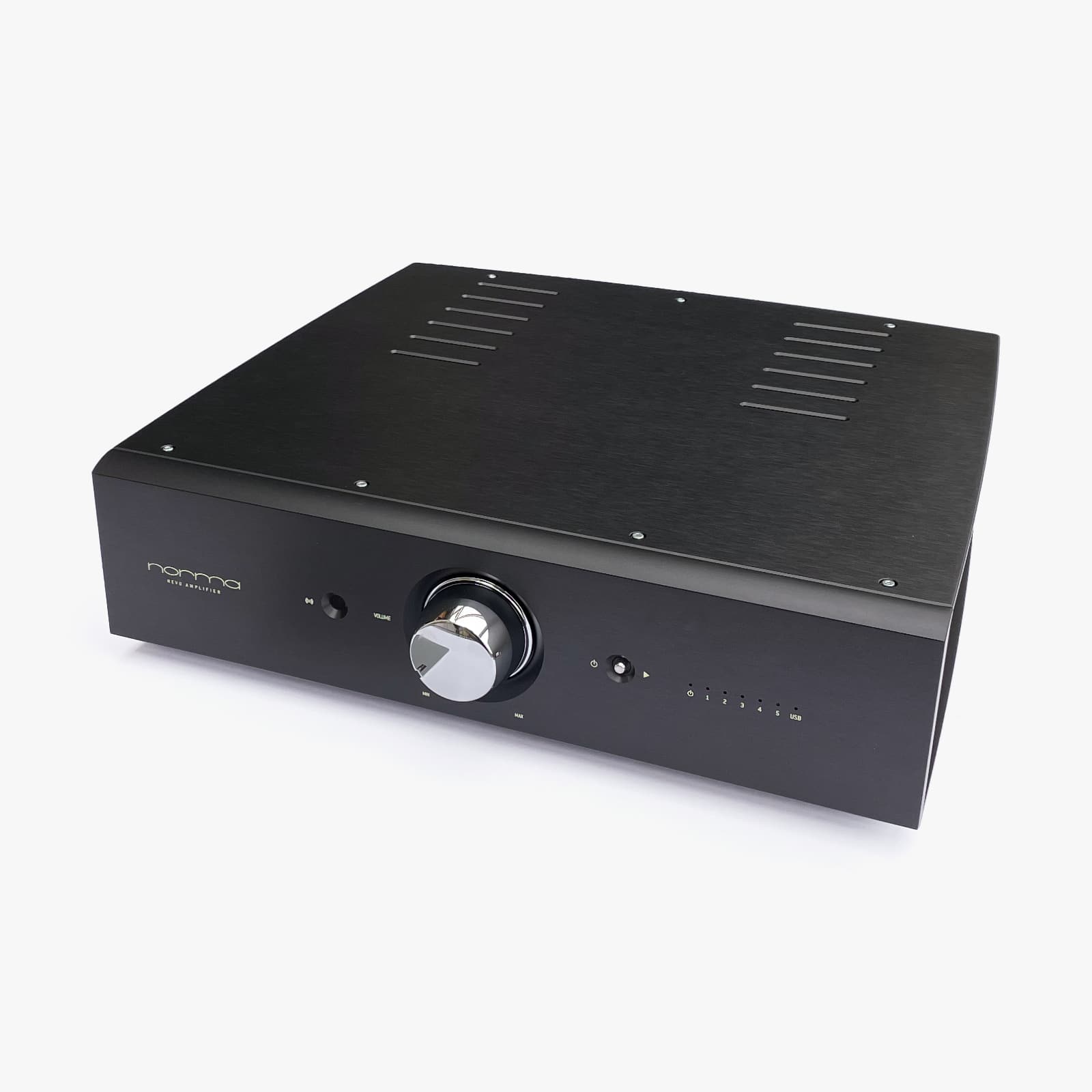

מגבר סטריאו משולב NORMA AUDIO REVO IPA – 140

נתונים טכניים

SPECIFICATIONS:

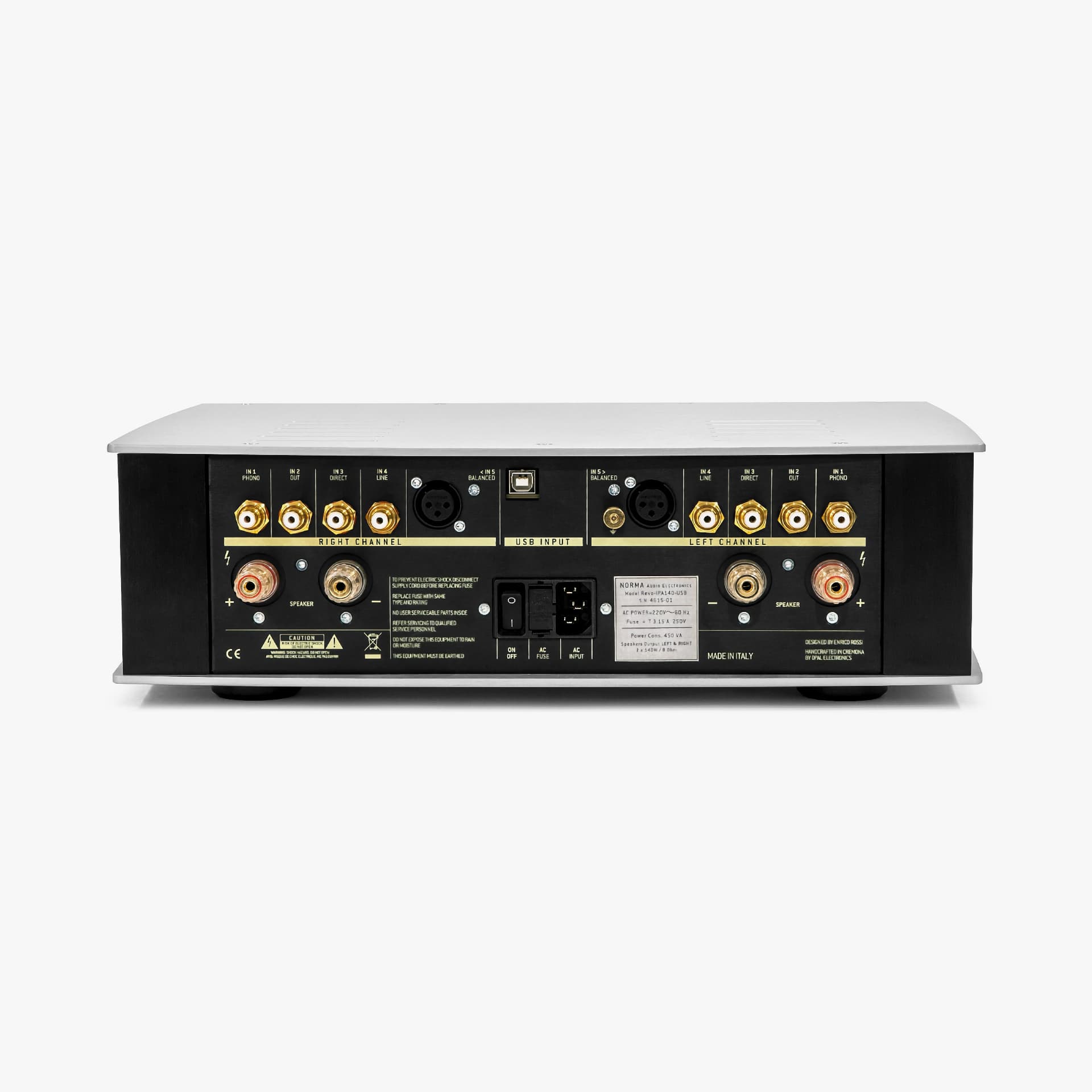

• Inputs: 4 RCA, 1 XLR Balanced, optional Phono, 1 USB DAC optional
• Input impedance: 47Kohm (not selected input) / 10 Kohm (selected input)
• Input Configuration: Phono MM/MC, Line, Direct AV, Balanced
• Output Signal: Passive Pre Out , Active Pre Out, Tape out, Subwoofer out
• Output Impedance (Pre-Out): 200 ohm
• Output Power: 1 Binding Post pairs, accept 4mm banana plugs and fork
• Frequency Response: 0 Hz – 1.8 MHz (-3dB, non filtered)
• Output Power: 140 W RMS / 8 Ohm – 280 W RMS / 4 Ohm (each channel)
• Gain: 34 dB
• Configuration: Dual Mono
• Circulation: Solid state,
• Power devices: MosFet, 3 pairs for each channel
• Output current available: 36 A continuous, 150 A peak (per channel)
• Ability to filter: 72.000 uF, 12 electrical capacitor for each channel
• Electric transformers: 2 toroidal special audio use, 400 VA per channel
• Supply: 230 V AC / 50 Hz, (100V AC or 115 VAC / 50-60Hz in some country)
• Dimensions (HxWxD): 110 x 430 x 365 mm, (excluding feet, knob and rear jacks)
• Weight: 25 Kg
