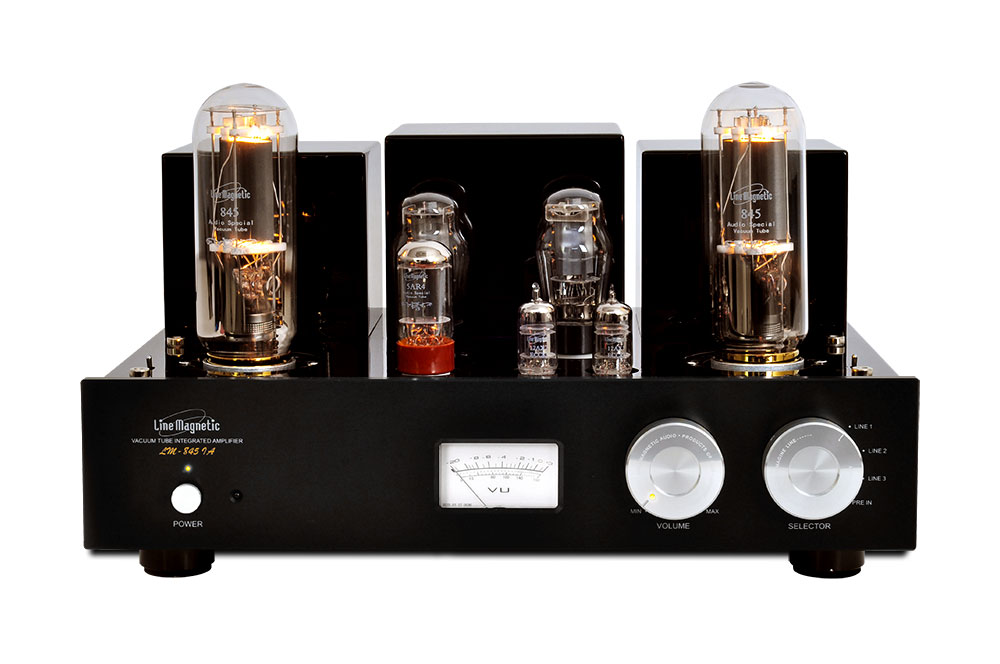

מגבר מנורות הי אנד , Line Magnetic – LM-845IA עובד בקונפיגורצית Single Ended – Class A המספק 22W לערוץ עם המנורה האקזוטית 845. בנוי כהלכה ללא מעגלים מודפסים אלא בחיווט ידני Point To Point , ומגיע עם שעון בקרה Bias לבדיקת מצב המנורות וכן עם אפשרות כיוונונם למצב אבסולוטי.חברת Line Magnetic מייצרת מגברי מנורות מדהימים ומוסיקלים עם יחס עלות תועלת תמורת הכסף מטורף. ביקורות למכביר בלשונית הביקורות בדף זה.
The LM-845IA is a quality upgrade of the old LM-518 amplifier. It delivers twenty-two watts per channel. Single ended design, Pure Class A, Integrated Stereo Amplifier with 845 output power tubes. The rear-illuminated front panel meter is used to adjust the polarization of the tubes.
The use of high quality components (Realcap capacitors, ALPS potentiometer) wired in the air for the most part is the guarantee of exemplary reliability. Its transformers output are of EI type, specially disigned for power supply.
Its power and current capacity allows it to manage a very wide range of speakers. The use of the legendary triode 845 offers a listening to an unusual musicality.
Hightlights
– Single ended design
– Class A amplifier
– Point-to-point wiring
– High quality components
TUBES
Input stage: 2x 12AX7
Rectifier: 1x 5AR4
Drivers: 2x 6P3P
Power stage: 2x 845 « single-ended » design and pure class A
Hand-made construction with the finest point-to-point wiring
Bias control is accessible on top of the amplifier panel with true ampere meter.
Analog Inputs: 3 line inputs Load impedance: 4/8/16Ω
SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied.
Metal and removable tube guard cage Infrared
Remote control
Tubes Basics Common Remplacements
12AX7 12AX7EH, ECC83, E83CC, CV4004, ECC803, 5751
12AU7 ECC82, 12AU7EH, 5814, 6189, CV4003
EL34 6CA7
Specifications
Class A amplifier – 2x22W RMS
THD: 1% (1kHz)
Signal/Noise ratio: 87dB (Weighted A)
Frequency response (-1.5dB): 10 – 50.000 Hz
Sensitivity: 220 mV (Built-in Mode)
Input Impedance: 100kΩ
Load impedance for HP to connect: 4/8/16Ω
Connectors
3x Line inputs RCA (pair)
1x Pré-in input
2x Screw terminals compatible with banana plugs
Included Accessories
2x Fuses
1x Remote control
2x Battery AAA
1x Detachable power cord
1x Manual
1x Warranty Card
Generality
Dimensions (L x H x P): 365 x 250 x 340 mm
Weight: 35 Kg
Finish: Black
